Huawei’s New Vertical Trifold Patent: A Shift Toward the ‘S-Fold’ Form Factor
Table of Contents
The Evolution of the Fold: Huawei’s Pivot to Vertical Trifolds

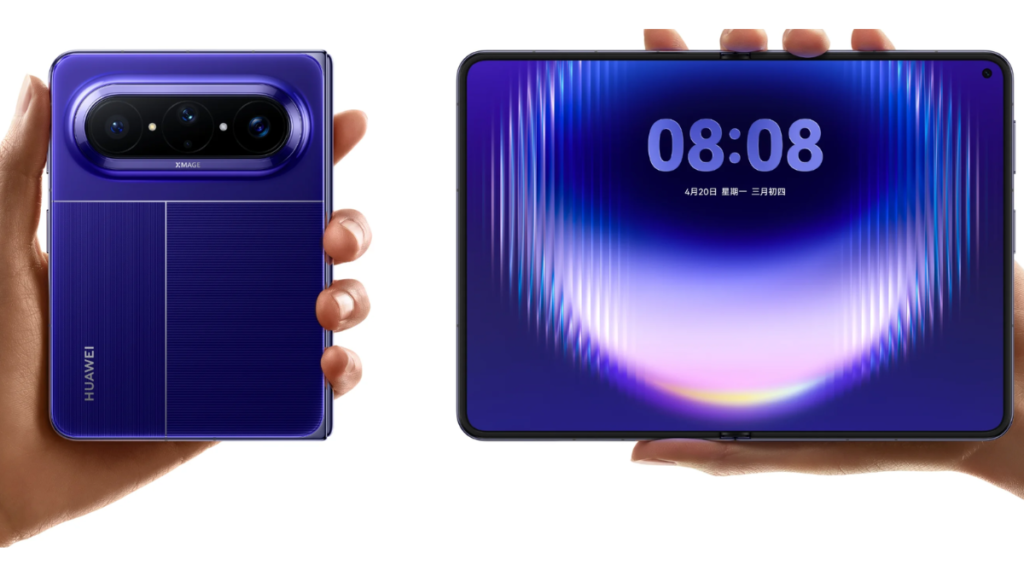

While the industry has spent the last three years refining the ‘book’ and ‘flip’ archetypes, Huawei is attempting to break the binary. Following the launch of the Mate XT—the world’s first commercially available tri-fold device—the company has filed a new design patent in the United States that suggests a fundamentally different approach: the vertical trifold.
Unlike the Mate XT, which expands horizontally to mimic a tablet, this new design focuses on vertical compression. According to patent filings surfaced by PostFast and industry analyst David Kowalski (@xleaks7), Huawei is experimenting with a device featuring two horizontal hinges that allow the phone to fold into an ‘S’ shape. This would effectively create a device that is significantly more compact than current flip phones while potentially offering a massive vertical screen real estate when fully extended.
- New Form Factor: Huawei is moving beyond horizontal trifolds to a vertical ‘S-fold’ design.
- Compact Footprint: The patent suggests a device that folds into a smaller footprint than the standard Pura X flip series.
- Engineering Complexity: The design utilizes two horizontal hinges to divide the internals into three distinct compartments.
- Strategic Positioning: This move signals Huawei’s intent to dominate the high-end foldable niche by diversifying screen geometries.
This isn’t just a curiosity for gadget enthusiasts; it is a strategic play in the ‘screen-to-body’ ratio war. As OLED substrates become more flexible and durable, the limitation is no longer whether a screen can fold, but how many times it can do so without compromising structural integrity or creating a visible crease.
Analyzing the S-Fold Mechanics
The technical core of this patent lies in the hinge alignment. In a standard clamshell (like the Samsung Galaxy Z Flip or the Huawei Pura X), a single hinge creates two halves. The proposed vertical trifold utilizes two hinges aligned horizontally. When unfolded, the device resembles a traditional, albeit elongated, smartphone. When folded, the screen bends twice, creating a compact, stacked profile.
From an engineering perspective, this ‘S-fold’ requires a sophisticated approach to z-axis thickness. Every hinge adds a millimeter or two to the device’s closed profile. For this to be viable, Huawei must utilize ultra-thin glass (UTG) or a high-density polymer that can withstand repeated stress at two different pivot points without fracturing. The patent indicates that the device will sport a single flexible display that spans all three sections, rather than three separate panels.
The Challenge of Internal Compartmentalization
One of the most intriguing aspects of the filing is how Huawei plans to handle the internals. The two hinges naturally divide the device into three compartments. This presents a significant challenge for battery placement and PCB (Printed Circuit Board) design. In a traditional phone, the battery is a large, flat slab. In an S-fold, Huawei will likely need to employ a multi-cell battery architecture, distributing power cells across the three sections to maintain balance and reduce the thickness of any single segment.
Comparing the Horizontal vs. Vertical Trifold
To understand why Huawei is pursuing this, we have to look at the Mate XT. The Mate XT is a productivity powerhouse, expanding a 6.4-inch screen into a 10.2-inch tablet. It targets the ‘laptop replacement’ or ‘power user’ segment. The vertical trifold, however, targets the ‘hyper-portable’ segment.
| Feature | Mate XT (Horizontal) | Proposed Vertical Trifold |
|---|---|---|
| Primary Goal | Productivity/Tablet Replacement | Portability/Compactness |
| Fold Logic | Z-fold (Outward/Inward) | S-fold (Vertical Stack) |
| Final Form | Large Tablet | Ultra-Small Flip |
| Use Case | Multitasking, Documents, Media | Quick Glance, One-Handed Use |
By pursuing both, Huawei is effectively hedging its bets. If users find 10-inch foldables too cumbersome for pockets, the S-fold offers a way to have a large screen that shrinks down to a size smaller than a credit card.
What This Means for the Foldable Market
The emergence of the vertical trifold indicates a shift in the foldable narrative from ‘innovation for the sake of innovation’ to ‘functional ergonomics.’ The primary friction point for current foldables is the ‘bulk factor.’ A device that can fold three times vertically solves the problem of the ‘pocket bulge’ while providing a screen that could potentially be 8 or 9 inches long when fully extended.
For the average consumer, this means a transition toward adaptive aspect ratios. Imagine a phone that starts as a compact square, opens into a standard smartphone, and then extends further into a vertical strip ideal for scrolling long feeds or reading documents without zooming. This would force app developers to move beyond simple ‘responsive design’ and toward ‘fluid layout’ systems that can handle sudden changes in vertical height.
The Technical Hurdles: Durability and Creases
Despite the ambition, the ‘S-fold’ faces a massive hurdle: the crease. In a single-fold device, the crease is a known annoyance. In a trifold, you have two creases. Depending on the fold direction, these creases could overlap or create structural weak points in the OLED layer.
Huawei’s success here depends on their advancements in LTPO OLED materials. The Mate XT already utilizes a 10.2-inch flexible LTPO OLED with a 90Hz refresh rate. To make the vertical trifold work, they will likely need to increase the pixel density (currently 382 ppi on the XT) to ensure that the stretching and compressing of the screen doesn’t lead to image distortion or ‘dead zones’ near the hinges.
Industry Context and Competitive Pressure
Huawei is not operating in a vacuum. Samsung and Xiaomi have both experimented with various folding mechanisms. However, Huawei’s aggression in the trifold space puts significant pressure on the rest of the industry. While Samsung focuses on the ‘fold’ and ‘flip’ stability, Huawei is treating the smartphone as a flexible canvas.
The filing of this patent in the US is also telling. While Huawei faces significant restrictions in the American market, filing patents globally protects their intellectual property and signals to competitors that they own the ‘blueprint’ for the S-fold. It is a statement of technical dominance, ensuring that any other manufacturer attempting a vertical trifold may have to navigate Huawei’s patent claims.
The Pura X Integration
Industry insiders suggest this device might be branded under the Pura X line, potentially as the ‘Pura X Trifold.’ The Pura series is Huawei’s vessel for high-end design and photographic innovation. Integrating a vertical trifold into this ecosystem would allow Huawei to market it as a fashion-forward, luxury tech item rather than just a utility tool.
Frequently Asked Questions
How does a vertical trifold differ from a standard flip phone?
A standard flip phone has one hinge and two screen segments. A vertical trifold has two hinges and three segments, allowing it to fold into a more compact ‘S’ shape, reducing its total footprint further while potentially offering more screen height when open.
Will the vertical trifold have a crease in the screen?
Yes, any foldable screen has a crease where the material bends. A trifold will have two such points. Huawei is working on flexible LTPO OLED technology to minimize the visibility and physical impact of these creases.
Is the Huawei Pura X Trifold available for purchase?
No. Currently, the vertical trifold is based on a design patent application. It is not yet a commercial product. The only trifold currently available from Huawei is the horizontal Mate XT.
Does a vertical trifold make the phone thicker?
Generally, yes. Each hinge adds thickness to the device when folded. The challenge for Huawei is to keep the ‘S-fold’ profile slim enough to remain practical for pocket carry.
What are the benefits of an S-fold design?
The primary benefit is maximum portability without sacrificing screen real estate. It allows the user to carry a device that is significantly smaller than a standard phone but can expand into a large vertical display for reading and browsing.
Closing Perspective
Huawei’s venture into vertical trifolds is a high-risk, high-reward gambit. The engineering hurdles regarding battery distribution and screen longevity are immense, but the potential to redefine the smartphone’s physical footprint is undeniable. By moving from the horizontal expansion of the Mate XT to the vertical compression of the S-fold, Huawei is effectively exploring every mathematical possibility of the foldable form factor. Whether this leads to a mass-market product or remains a patent-portfolio trophy remains to be seen, but it confirms that the ‘slab’ phone is increasingly becoming a relic of the past.
